Mircom’s BPS Series Signal Booster Power Supply is designed to extend the power capabilities of existing indicating circuits and to provide power for other ancillary devices. The BPS-1100 may be connected to any ULC Listed Fire Alarm Control Panel to provide indicating circuit expansion.

Order Information

BPS-802 (UL only)
8 Amp Remote Power Supply

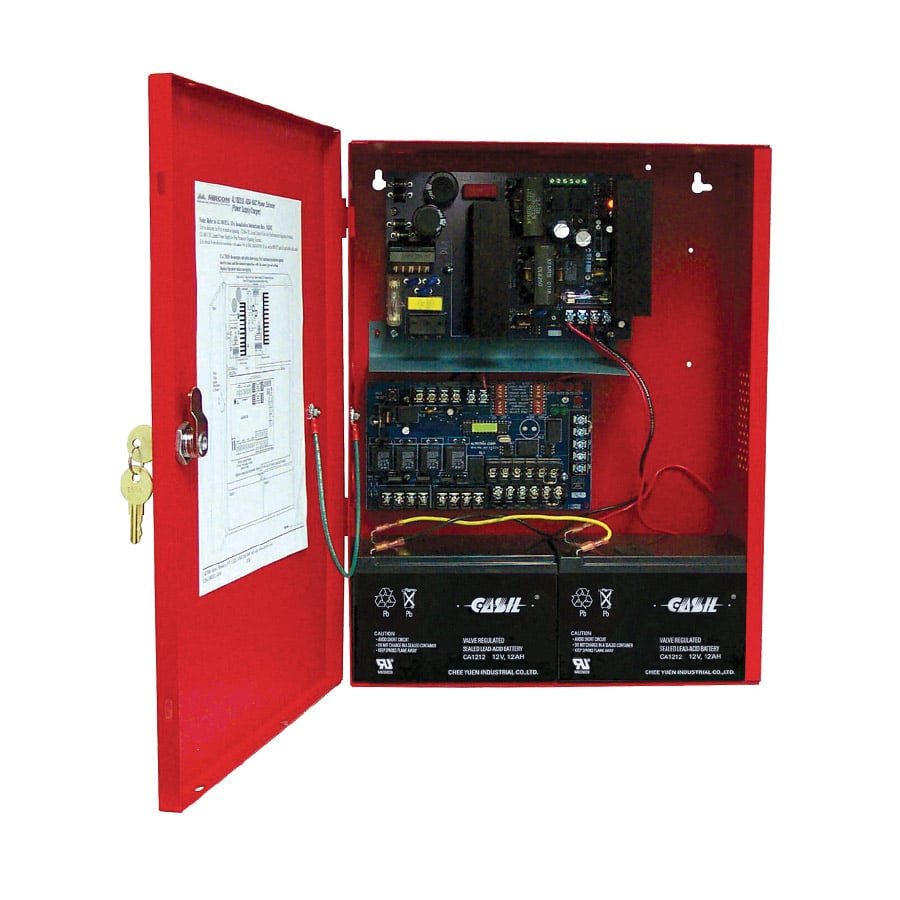

BPS-1002 (UL only)
10 Amp Remote Power Supply

BPS-1100 (ULC only)
Signal Booster Power Supply

The BPS-1100 consists of four indicating circuits, which can be expanded up to twelve with the addition of two SGM-1004A Four Indicating Circuit Module. Each indicating circuit is rated at 1.7 Amp maximum with a total output capacity of 11 Amps. The outputs may be configured as four Class A/B (Style Z/Y).
